High Temperature Ball Valve QJ41M
Key words:
Classification:
Keyword： High Temperature Ball Valve QJ41M
E-mail:
Details
Our products now cover a wide range of standardized fluid control products that can be adapted to a variety of drive modes, comprising ball valves, butterfly valves, gate valves, globe valves, check valves, safety valves, rotary ball valves, plunger valves etc. Our products are widely used in water conservancy, municipal, electric power, gas, petrochemical, coal chemical, energy, environmental protection, medicine, real estate, metallurgy, mining and many other fields.

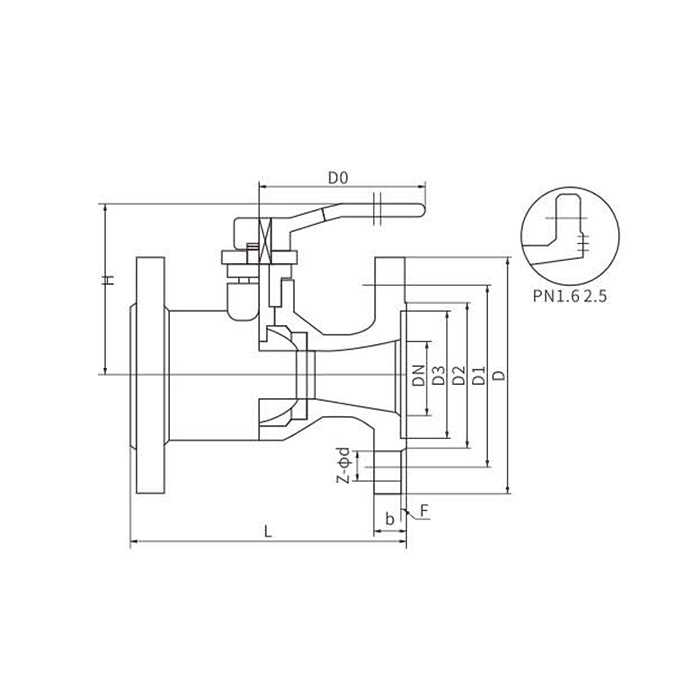

Main Dimensions and Connection Dimensions Replace Ball Valves QQ41M-1.6
| DN | Size | |||||||
| L | D | D1 | D2 | b | Z-φd | H | D0 | |
| 15 | 130 | 95 | 65 | 45 | 16 | 4-14 | 105 | 150 |
| 20 | 140 | 105 | 75 | 55 | 16 | 4-14 | 110 | 150 |
| 25 | 150 | 115 | 85 | 65 | 16 | 4-14 | 120 | 160 |
| 32 | 165 | 135 | 100 | 78 | 18 | 4-18 | 140 | 180 |
| 40 | 180 | 145 | 110 | 85 | 18 | 4-18 | 155 | 250 |
| 50 | 200 | 160 | 125 | 100 | 20 | 4-18 | 175 | 300 |
| 65 | 220 | 180 | 145 | 120 | 20 | 4-18 | 195 | 300 |
| 80 | 250 | 195 | 160 | 135 | 22 | 8-18 | 225 | 320 |
| 100 | 280 | 215 | 180 | 155 | 24 | 8-18 | 250 | 320 |
| 125 | 320 | 245 | 210 | 185 | 26 | 8-18 | 270 | 360 |
| 150 | 360 | 280 | 240 | 210 | 28 | 8-23 | 290 | 360 |
Main Dimensions and Connection Dimensions Replacement Gate Valve QZ41M-1.0
| DN | Size | |||||||
| L | D | D1 | D2 | b | Z-φd | H | DO | |
| 40 | 165 | 145 | 110 | 85 | 18 | 4-18 | 155 | 250 |
| 50 | 180 | 160 | 125 | 100 | 20 | 4-18 | 175 | 300 |
| 65 | 195 | 180 | 145 | 120 | 20 | 4-18 | 195 | 300 |
| 80 | 210 | 195 | 160 | 135 | 22 | 4-18 | 225 | 320 |
| 100 | 230 | 215 | 180 | 155 | 22 | 8-18 | 250 | 320 |
| 125 | 255 | 245 | 210 | 185 | 24 | 8-18 | 270 | 360 |
| 150 | 280 | 280 | 240 | 210 | 24 | 8-23 | 290 | 360 |
| 200 | 330 | 335 | 295 | 265 | 26 | 8-23 | 320 | 450 |
Main Dimensions and Connection Dimensions Replacement Gate Valve PQ41M-1.0
| DN | Size | |||||||
| L | D | D1 | D2 | b | Z-φd | H | D0 | |
| 25 | 160 | 115 | 85 | 65 | 16 | 4-14 | 120 | 160 |
| 32 | 180 | 135 | 100 | 78 | 18 | 4-18 | 140 | 180 |
| 40 | 230 | 145 | 110 | 85 | 18 | 4-18 | 155 | 250 |
| 50 | 250 | 160 | 125 | 100 | 20 | 4-18 | 175 | 300 |
| 65 | 265 | 180 | 145 | 120 | 20 | 4-18 | 195 | 300 |
| 80 | 280 | 195 | 160 | 135 | 22 | 8-18 | 225 | 320 |
| 100 | 300 | 215 | 180 | 155 | 24 | 8-18 | 250 | 320 |
| 125 | 225 | 245 | 210 | 185 | 26 | 8-18 | 270 | 260 |
| 150 | 350 | 280 | 240 | 210 | 28 | 8-23 | 290 | 360 |
| 200 | 400 | 335 | 295 | 265 | 30 | 8-23 | 320 | 450 |
