High Temperature Ball Valve Q11M
Key words:
Classification:
Keyword： High Temperature Ball Valve Q11M
E-mail:
Details
Our products now cover a wide range of standardized fluid control products that can be adapted to a variety of drive modes, comprising ball valves, butterfly valves, gate valves, globe valves, check valves, safety valves, rotary ball valves, plunger valves etc. Our products are widely used in water conservancy, municipal, electric power, gas, petrochemical, coal chemical, energy, environmental protection, medicine, real estate, metallurgy, mining and many other fields.
The valve absorbs the structure of the foreign high-temperature ball valve and is developec in accordance with the actual situation in the country.The connection size conforms to the natic standard.
In particular,the sealing ring of our factory has the advantages of high strength,high wear resistance and strong resilience.Therefore,it is reliable in sealing and has a long service life.It is widely used as a switch for pipeline media such as petroleum,chemical and steam.
In the use of the valve,the valve is required to be fully open or fully closed.It is not allowec to open the valve as a regulating flow.Otherwise,the sealing surface may be damaged when medium flow rate is high.

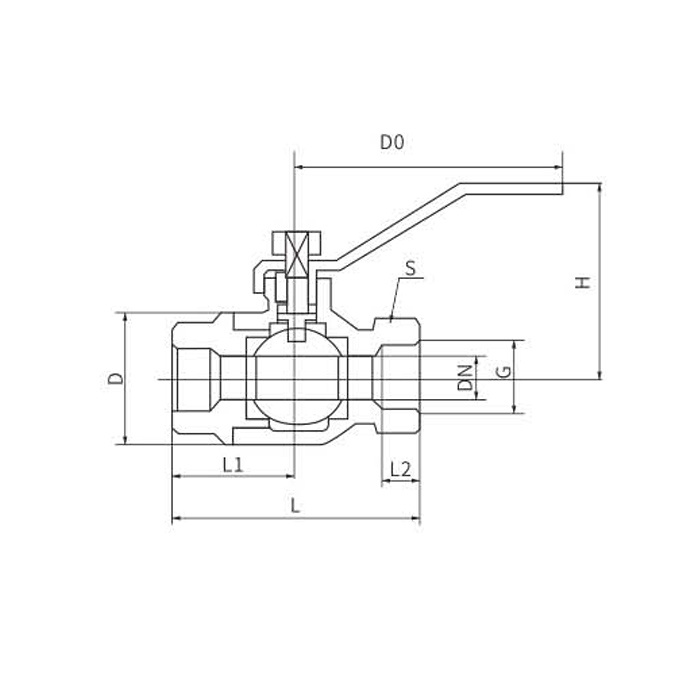

Main Thread Size And Connection Size Of Internal Thread Ball Valve Q11M-1.6Q
| DN | size | |||||||
| G | L | L1 | L2 | S | D | H | D0 | |
| 15 | 1/2" | 90 | 45 | 14 | 32 | 48 | 82 | 125 |
| 20 | 3/4" | 100 | 50 | 16 | 36 | 55 | 85 | 125 |
| 25 | 1" | 115 | 58 | 18 | 46 | 62 | 90 | 125 |
| 32 | 11/4" | 130 | 66 | 20 | 55 | 80 | 120 | 250 |
| 40 | 11/2" | 150 | 77 | 22 | 61 | 90 | 145 | 250 |
| 50 | 2" | 180 | 91 | 24 | 75 | 112 | 150 | 300 |
Performance Specification
| Product number | DN | Product number | Valve material | Adapt to medium | |||
| Nominal pressure | Applicable medium | Applicable temperature | Body | Valve flap | |||
| Q11S-16Q | 12-25 | 16 | Water,steam,gas,oil,etc. | ≤250 | QT450-10 | 1Cr18Ni9Ti | 8202 |
| Q41S-16P | 15-300 | WT200 | |||||
| Q41S-16 | 15-500 | ||||||
