Fixed Metal Sealing Ball Valve

Key words:

Classification:

Ball Valve

Keyword： Fixed Metal Sealing Ball Valve

E-mail:

zgkk@zgkkv.com

Message

Details

Our products now cover a wide range of standardized fluid control products that can be adapted to a variety of drive modes, comprising ball valves, butterfly valves, gate valves, globe valves, check valves, safety valves, rotary ball valves, plunger valves etc. Our products are widely used in water conservancy, municipal, electric power, gas, petrochemical, coal chemical, energy, environmental protection, medicine, real estate, metallurgy, mining and many other fields.

Structural Characteristics and Uses

1.The operation reduces eoart:The medum pressure w producethe good acfon on the spherold to transmnt omplelely gives mhe lower beang.he spheroid relatve postion milraion.,the bohsidesvalve seat seal stress will not be even,the operation moment of force will be low.

2. Uses the spng pre-Canada load the movable metal valve seatstnucture, can be suitable the high temperalure, he high pressure as wel as each medlum pipellne

3. According to the customer request, may design can be suitable in contains medium and so on pellet, ground paste4. Widely is suitable for medum pipelnes and so on food, medicine, petroleum, chemical industy, natural gas, steel and iron,envronmental protection, Papermaking.

Implementation of Standards

Design and manufacture :GB/T 12237-2007;API 608

Inspection and test:GB/T13927-2008;AP1 598

Flange connection:JB/T 79.1~4-1994;ASME/ANSIB 16.5

Structure length:GB/T 12221-2005;ASME/ANSIB 16.10

Test Pressure

PN	Maximum temperature Working pressure	Casetest pressure	Gas seals test pressure	High-pressure sealing test pressure
1.6	1.6	2.4	0.6	1.76
2.5	2.5	3.8	0.6	2.75
4.0	4.0	6.0	0.6	4.4
6.4	6.4	9.6	0.6	7.1
10.0	10.0	15.0	0.6	11.0
Class 150	2.0	3.0	0.6	2.2
Class 300	5.0	7.5	0.6	5.5
Class 600	10.0	15.0	0.6	11.0

Terms of Use

Shell material	Work temperature	Applicable media
Carbon steel	≤425℃	Water,steam,oil,etc.
Chrome P-type nickel-titanium steel	≤200℃	Nitric acid
Chrome-nickel steel R-Mo Ti	≤200℃	Acetic acid
Chromium molybdenum vanadium steel	≤550℃	Steam, metallurgical, energy, eic.

main Components Material

Body,bonnet	GB	WCB	ZGOCr18Ni9	ZGOCr17Ni12Mo2	ZG15Cr1Mo1V
Body,bonnet	ASTM	A216WCB	CF8	CF8M	WC9
Ball	GB	2Cr13/Special surface treatment	1Cr18Ni9Ti/Special surface treatment	0Cr18Ni12Mo2Ti/Special surface treatment	25Cr2Mo1V/Special surface treatment
Ball	ASTM	420+HF	304+HF	316+HF	F22a+HF
Stem,fixed axis	GB	2Cr13	0Cr18Ni9	0Cr17Ni12Mo2	25Cr2Mo1V
Stem,fixed axis	ASTM	420	304	316	F22a
Seat	GB	2Cr13	0Cr18Ni9	OCr17Ni12Mo2	25Cr2Mo1V
Seat	ASTM	420	304	316	F22a
Packing	GB	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite
Packing	ASTM	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite
Bolt	GB	35	0Cr18Ni9	0Cr18Ni9	15Cr1Mo1V
Bolt	ASTM	A193 B7	A320-B8	A320-B8	A193B16
Nut	GB	45	0Cr18Ni9	OCr18Ni9	20CrMo
Nut	ASTM	A194 2H	A194-8	A194-8	A194-4

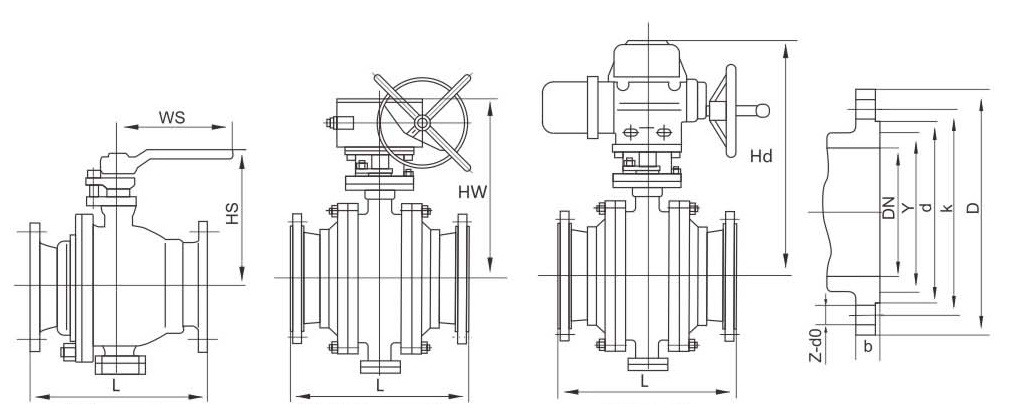

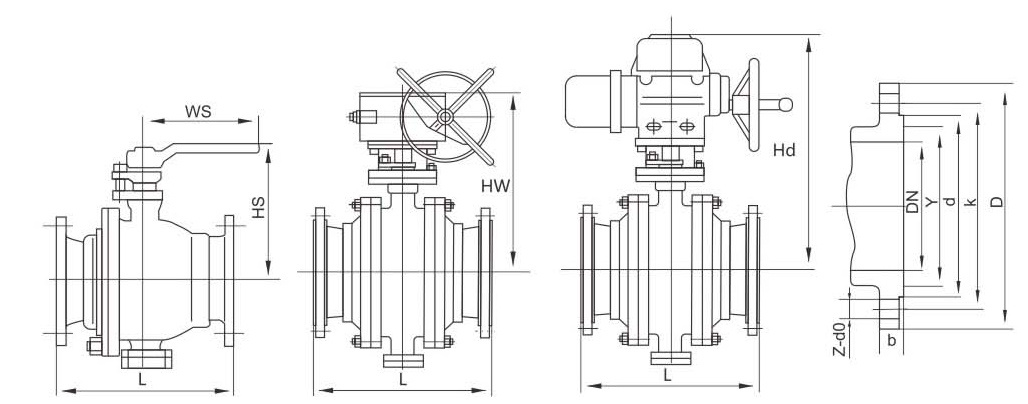

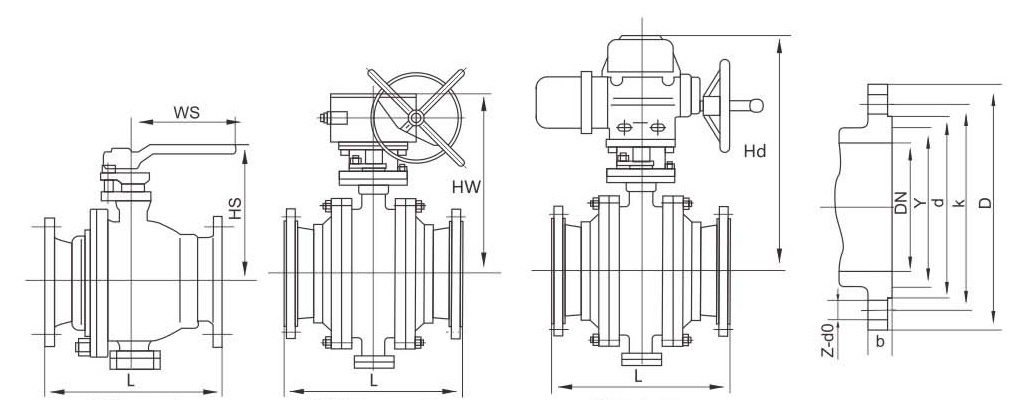

Main External and Connection Dimension (JB/T79.1)

DN	L	D	K	d	Y	b	Z-d0	Ws	Hs	Hw	Hd
PN16
150	394	280	240	210	—	22	8-23	1000	305	470	540
200	457	335	295	265	—	24	12-23	—	—	520	580
250	533	405	355	320	—	26	12-25	—	—	610	640
300	610	460	410	375	—	28	12-25	—	—	650	690
350	686	520	470	435	—	32	16-25	—	—	740	785
400	762	580	525	485	—	36	16-30	—	—	795	830
450	864	640	585	545	—	38	20-30	—	—	860	910
500	914	705	650	608	—	42	20-34	—	—	945	990
600	1067	840	770	718	—	46	20-41	—	—	1040	1090
700	1245	910	840	788	—	48	24-41	—	—	1150	1210
800	1372	1020	950	898	—	50	24-41	—	—	1280	1340
900	1524	1120	1050	998	—	52	28-41	—	—	1430	1510
1000	1753	1255	1170	1110	—	54	28-48	—	—	1580	1640
1200	2032	1485	1390	1325	—	56	32-54	—	—	1810	1910
1400	2300	1685	1590	1525	—	60	36-54	—	—	2010	2115
PN25
150	403	300	250	218	—	30	8-25	1000	305	470	555
200	502	360	310	278	—	34	12-25	—	—	540	595
250	568	425	370	332	—	36	12-30	—	—	630	655
300	648	485	430	390	—	40	16-30	—	—	650	705
350	762	550	490	448	—	44	16-34	—	—	740	795
400	838	610	550	505	—	48	16-34	—	—	795	830
450	914	660	600	555	—	50	20-34	—	—	860	910
500	991	730	660	610	—	52	20-41	—	—	945	990
600	1143	840	770	718	—	56	20-41	—	—	1040	1090
700	1346	955	875	815	—	60	24-48	—	—	1150	1210
800	1524	1070	990	930	—	64	24-48	—	—	1305	1340
900	1727	1180	1090	1025	—	66	28-54	—	—	1505	1600
1000	1880	1305	1210	1140	—	68	28-58	—	—	1615	1705
1200	2184	1525	1420	1350	—	72	32-58	—	—	1925	2035
1400	2300	1750	1640	1560	—	78	36-65	—	—	2110	2185

DN	L	D	K	d	Y	b	Z-d0	Ws	Hs	Hw	Hd
PN40
150	403	300	250	218	204	30	8-25	1000	360	485	590
200	502	375	320	282	260	38	12-30	—	—	580	640
250	568	445	385	345	313	42	12-34	—	—	665	680
300	648	510	450	408	364	46	16-34	—	—	760	810
350	762	570	510	465	422	52	16-34	—	—	820	890
400	838	655	585	535	474	58	16-41	—	—	860	940
450	914	680	610	560	524	60	20-41	—	—	930	1010
500	991	755	670	612	576	62	20-48	—	—	980	1130
600	1143	890	795	730	678	62	20-54	—	—	1040	1090
700	1346	995	900	835	768	68	24-54	—	—	1150	1210
800	1524	1135	1030	960	876	76	24-58	—	—	1305	1340
900	1727	1270	1168	1022	—	105	32-54	—	—	1505	1600
1000	1880	1238	1156	1086	—	114	32-44	—	—	1615	1705
1200	2184	1467	1372	1302	—	133	32-51	—	—	1925	2035
1400		1708	1600	1518	—	154	28-60	—	—	2110	2185
PN64
150	495	340	280	240	204	38	8-34	1200	360	485	590
200	597	405	345	300	260	44	12-34	—	—	580	650
250	673	470	400	352	313	48	12-41	—	—	665	720
300	762	530	460	412	364	54	16-41	—	—	760	840
350	826	595	525	475	422	60	16-41	—	—	820	930
400	902	670	585	525	474	66	16-48	—	—	870	990
500	1054	800	705	640	576	70	20-54	—	—	995	1150
600	1232	930	820	750	678	76	20-58	—	—	1100	1180
700	1397	1035	940	800	—	95	28-51	—	—	1180	1230
800	1651	1149	1054	914	—	108	28-54	—	—	1345	1385
900	1880	1270	1168	1022	—	114	32-54	—	—	1550	1655
1000	1981	1270	1175	1092	—	133	32-51	—	—	1675	1745
1200	2311	1511	1403	1308	—	152	28-60	—	—	1945	2075

DN	L	D	K	d	Y	b	Z-d0	Ws	Hs	Hw	Hd
Class 150
2"	178	150	120.7	92	—	14.3	4-19	260	155	—	—
2¹/2"	190	180	139.7	105	—	15.9	4-19	350	185	—	—
3"	203	190	152.4	127	—	17.5	4-19	500	205	—	—
4"	229	230	190.5	157	—	22.3	8-19	650	255	390	500
5"	356	255	215.9	186	—	22.3	8-22.5	800	285	410	520
6"	394	280	241.3	216	—	23.9	8-22.5	1000	305	470	540
8"	457	345	298.5	270	—	27.0	8-22.5	—	—	520	580
10"	533	405	362	324	—	28.6	12-25.5	—	—	610	640
12"	610	485	431.8	381	—	30.2	12-25.5	—	—	650	690
14"	686	535	476.3	413	—	33.4	12-28.5	—	—	740	785
16"	762	595	539.8	470	—	35.0	16-28.5	—	—	795	830
18"	864	635	577.9	533	—	38.1	16-32	—	—	860	910
20"	914	700	635.0	584	—	41.3	2032	—	—	945	990
24"	1067	815	749.3	692	—	46.1	20-35	—	—	1040	1090
28"	1245	927	864	800	—	71	28-35	—	—	1150	1210
32"	1372	1060	978	914	—	81	28-41	—	—	1280	1340
Class 300
2"	216	165	127	92	—	20.7	8-19	260	155	—	—
2¹/2"	241	190	149.2	105	—	23.9	8-22.5	350	185	—	—
3"	283	210	168.3	127	—	27.0	8-22.5	500	205	—	—
4"	305	255	200	157	—	30.2	8-22.5	800	270	410	530
5"	381	280	235	186	—	33.4	8-22.5	1000	305	470	560
6"	403	320	269.9	216	—	35.0	12-22.5	1200	340	485	590
8"	502	380	330.2	270	—	39.7	12-25.5	—	—	5809	640
10"	568	445	387.4	324	—	46.1	16-28.5	—	—	665	680
12"	648	520	450.8	381	—	49.3	16-32	—	—	760	810
14"	762	585	514.4	413	—	52.4	20-32	—	—	820	890
16"	838	650	571.5	470	—	55.6	20-35	—	—	860	940
18"	914	710	628.5	533	—	58.8	24-35	—	—	930	1010
20"	991	775	685.8	584	—	62.0	24-35	—	—	980	1130
Class 600
2"	292	165	127	108	—	25.4	8-19	350	175	—	—
21/2"	330	190	149.2	127	—	28.6	8-22.5	500	200	—	—
3"	356	210	168.3	146	—	31.8	8-22.5	650	235	—	—
4"	432	275	215.9	175	—	38.1	8-25.5	1000	275	395	550
5"	508	330	266.7	210	—	44.5	8-28.5	1200	325	430	580
6"	559	355	292.1	241	—	47.7	12-28.5	—	—	495	620
8"	660	420	349.2	302	—	55.6	12-32	—	—	595	680
10"	787	510	431.8	356	—	63.5	16-35	—	—	680	740
12"	838	560	489	413	—	66.7	20-35	—	—	790	850
