Flange Floating Ball Valve Q41/641/9B41F-16C/P

Key words:

Classification:

Ball Valve

Keyword： Flange Floating Ball Valve Q41/641/9B41F-16C/P

E-mail:

zgkk@zgkkv.com

Message

Details

Our products now cover a wide range of standardized fluid control products that can be adapted to a variety of drive modes, comprising ball valves, butterfly valves, gate valves, globe valves, check valves, safety valves, rotary ball valves, plunger valves etc. Our products are widely used in water conservancy, municipal, electric power, gas, petrochemical, coal chemical, energy, environmental protection, medicine, real estate, metallurgy, mining and many other fields.

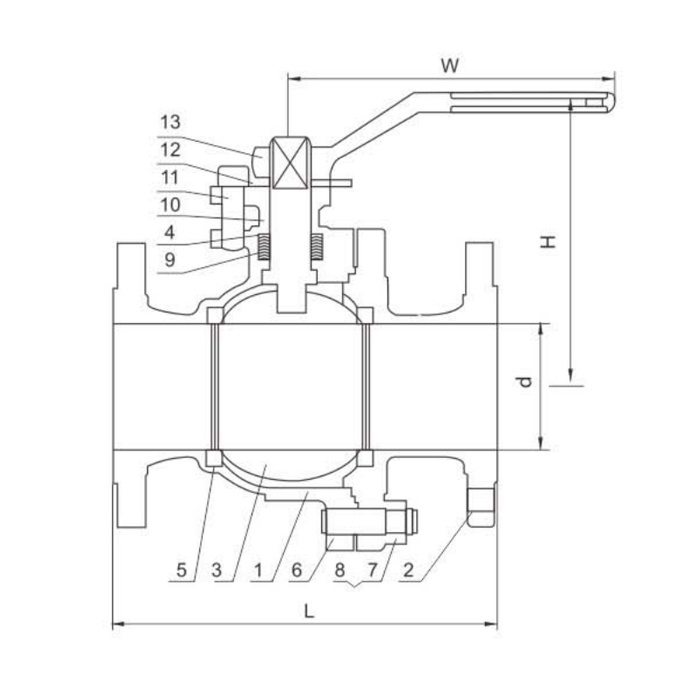

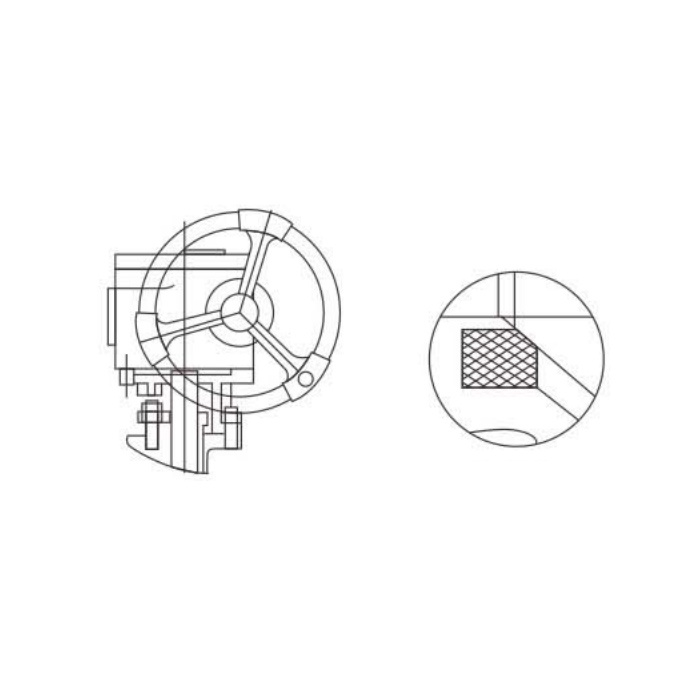

Main External and Connection Dimension

DN	L	D	D1	D2	B	Z-φd	H	W
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P
15	130	95	65	45	14	4-014	78	140
20	130	105	75	55	14	4-014	84	160
25	140	115	85	65	14	4-014	95	180
32	165	135	100	78	16	4-018	150	250
40	165	145	110	85	16	4-018	150	300
50	203	160	125	100	16	4-018	170	350
65	222	180	145	120	18	4-018	195	350
80	241	195	160	135	20	8-018	215	400
100	305	215	180	155	20	8-018	250	500
125	356	245	210	185	22	8-018	265	600
150	394	280	240	210	24	8-023	270	800
200	457	335	295	265	24	12-023	330	800
250	533	405	355	320	26	12-025	450	1300

Main External and Connection Dimension

DN	L	D	D1	D2	b		Z-φd	H	W
Q41F-25 Q41F-25P Q641F-25 Q641F-25P Q9B41F-25 Q9B41F-25P
15	130	95	65	45	16		4-014	103	100
20	140	105	75	55	16		4-014	112	160
25	150	115	85	65	16		4-014	123	160
32	165	135	100	78	18		4-018	150	250
40	180	145	110	85	18		4-018	156	250
50	200	160	125	100	20		4-018	172	350
65	220	180	145	120	22		8-018	197	350
80	250	195	160	135	22		8-018	222	450
100	280	230	190	160	24		8-023	253	450
125	320	270	220	188	28		8-025	275	600
150	360	300	250	218	30		8-025	286	800
200	400	360	310	278	34		12-025	340	1200
250	530	425	370	332	36		12-030	470	1400
Q41F-4 Q41F-40P Q341F-40 Q341F-40P Q641F-40 Q641F-40P Q9B41F-40 Q9B4F-40P
15	140	95	65	45	16	40	4-014	103	100
20	152	105	75	55	16	51	4-014	112	160
25	165	115	85	65	16	58	4-014	123	160
32	178	135	100	78	18	66	4-018	150	250
40	190	145	110	85	18	76	4-018	156	250
50	216	160	125	100	20	88	4-018	172	350
65	241	180	145	120	22	110	8-018	197	350
80	283	195	160	135	22	121	8-018	222	450
100	305	230	190	160	24	150	8-023	253	450
125	381	270	220	188	28	176	8-025	275	600
150	403	300	250	218	30	204	8-025	286	800
200	502	375	320	282	38	260	12-030	340	1200
250	568	445	385	345	42	313	12-034	470	1400
Q41F-63 Q41F-63P Q341F-63 Q341F-63P Q641F-63 Q641F-63P Q9B41F-63 Q9B4F-63P
15	165	105	75	55	18	40	4-014	105	130
20	190	125	90	68	20	51	4-018	125	130
25	216	135	100	78	22	58	4-018	135	160
32	229	150	110	82	24	66	4-018	150	160
40	241	165	125	95	24	76	4-023	165	230
50	292	175	135	105	26	88	4-023	175	230
65	330	200	160	130	28	110	8-023	200	400
80	356	210	170	140	30	121	8-023	210	400
100	432	250	200	168	32	150	8-025	250	700
125	508	295	240	202	36	176	8-030	295	1100
150	559	340	280	240	38	204	8-034	340	1500
