Fixed Ball Valve 150Lb

Key words:

Classification:

Ball Valve

Keyword： Fixed Ball Valve 150Lb

E-mail:

zgkk@zgkkv.com

Message

Details

Our products now cover a wide range of standardized fluid control products that can be adapted to a variety of drive modes, comprising ball valves, butterfly valves, gate valves, globe valves, check valves, safety valves, rotary ball valves, plunger valves etc. Our products are widely used in water conservancy, municipal, electric power, gas, petrochemical, coal chemical, energy, environmental protection, medicine, real estate, metallurgy, mining and many other fields.

Main Parts Materia

No	Part Name	Carbon Steel	18Cr-9Ni-2Mo	Low temperature carbon steel
1	Body	A216-WCB	A351-CF8M	A352-LCB
2	Bonnct	A216-WCB	A351 CF8M	A352 LCB
3	Ball	A182-F304	A182-F316	A182-F304
4	Stem	A276-304	A276-316	A276-304
5	Seat	A105+ENP	A182-F316	A350-LF2+ENP
6	Seat seal	Glass Filled PTFE
7	Seat Spring	A313-304	Inconel X-750	A313-304
8	Seat O-Ring	NBR	Viton	Viton
9	Stem O-Ring	NBR	Viton	Viton
10	Bonnet Gasket	Graphite+304°	Graphite+316²	Graphite+304²
11	Bonnet O-Ring	NBR	Viton	Viton
12	Antistatic Spring	A313-304	A313-316	A313-304
13	Grounding Plunger	A216-WCB	A₁82-F316	A182-F304
14	Valve cover bolt	A193-B7	A193-B8	A320-L7
15	Valve cover nut	A194-2H	A194-8	A194-7
16	Trunn ion	A276-304	A276-316	A276-304
17	Trunnion Bearing	304+PTFE	316+PTFE	304+PTFE
18	Packing press plate	A216-WCB	A351-CF8M	A352-LCB
19	Packing bolt	A193-B7	A193-B8	A193-B7
20	Positioning sheet	Carbon Steel	Carbon Steel +Zn	Carbon Steel
21	Handle	Carbon Steel

Applicable standards:

Ball valves,API608/API6D

Ball valves,ISO 10434/ISO14313

Fire durable,API607

Anti static,API608

Valves,ASME B16.34

Face to face,ASMEB16.10

End flanges,ASMEB16.5

Buttwelding ends,ASMB16.25

Inspection and test;API598/API6D

Design description:

Full port design

Bb,bolted bonnet,split body

Floating ball type

Blow-out proof stem

Fire durable construction

Anti static device

Stopper device

ISO5211 mounting pad

Flanged or butt welding ends

Available with bg operator

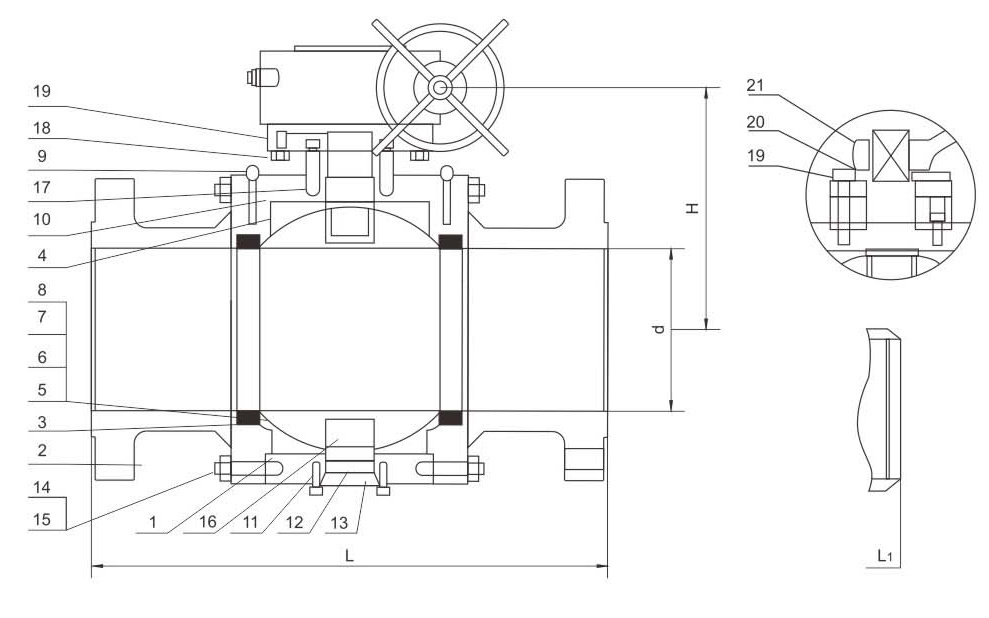

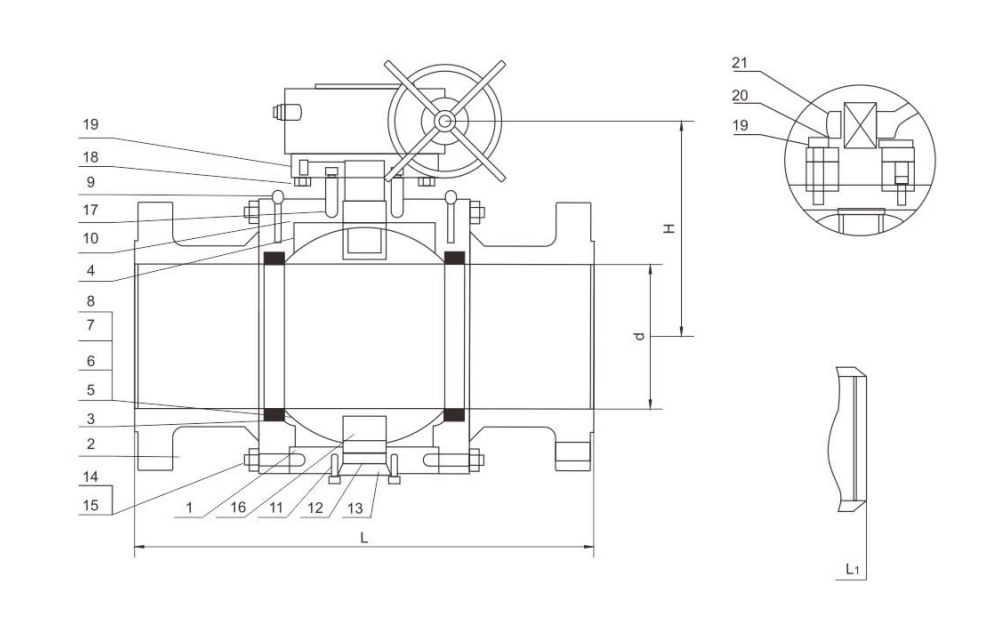

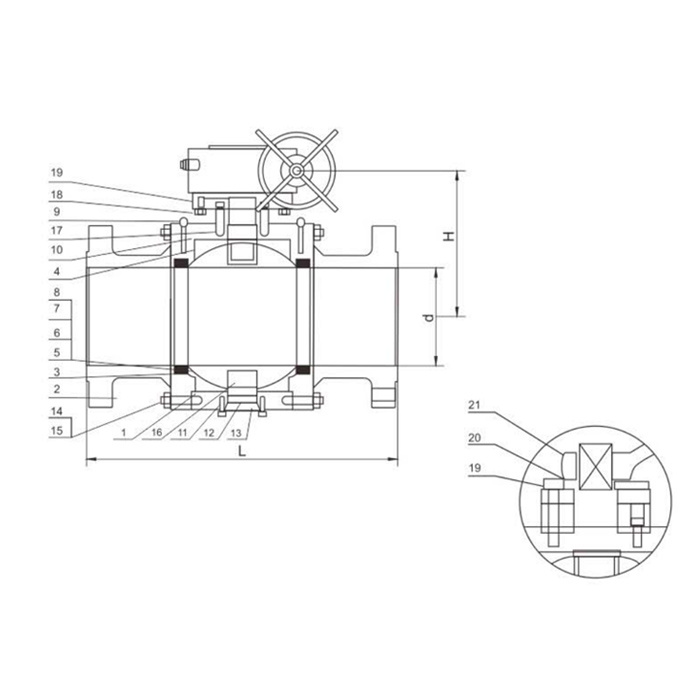

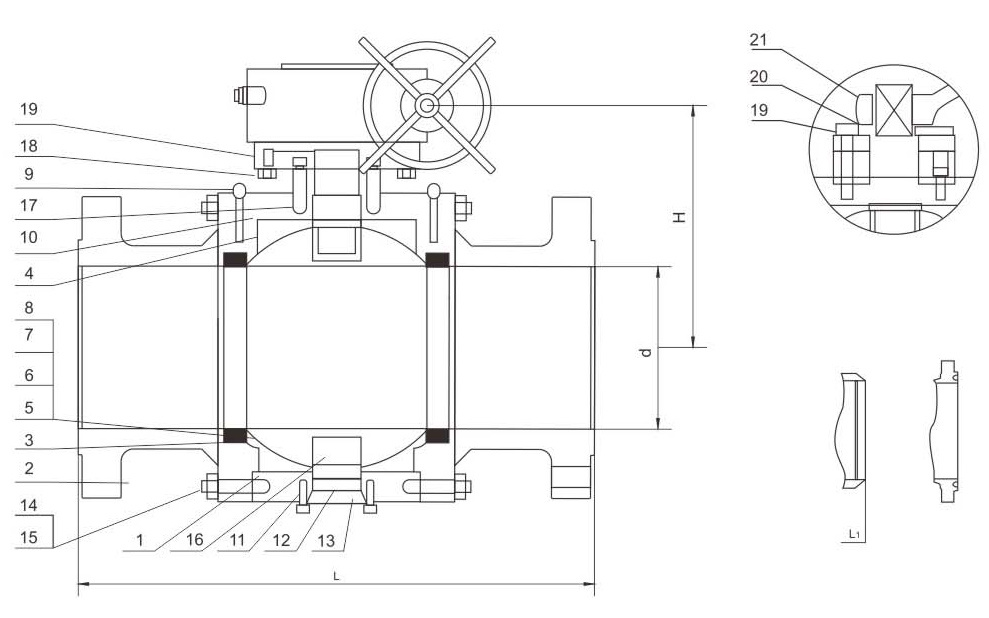

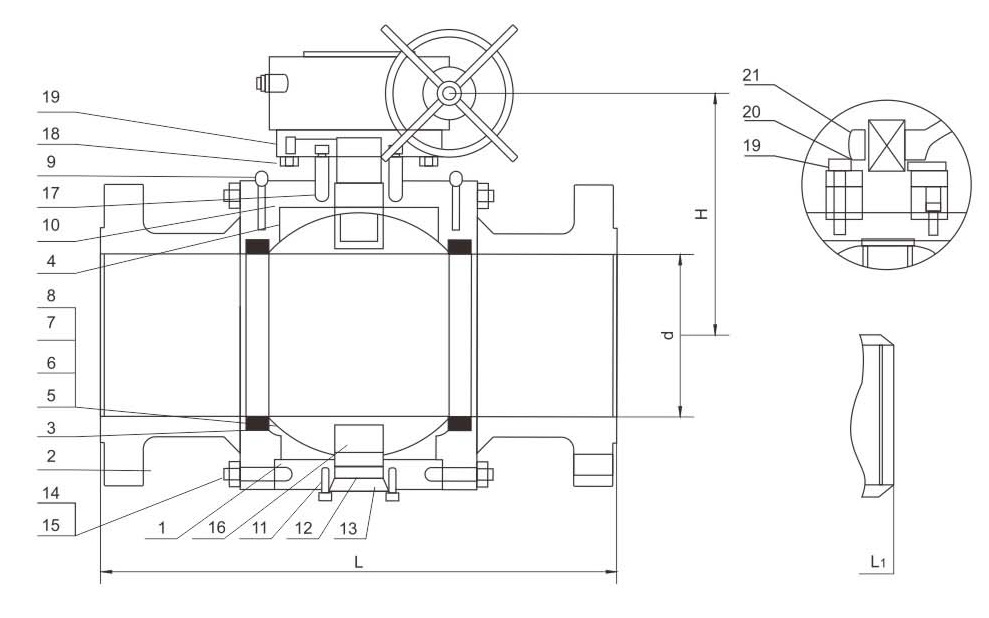

Main External and Connection Dimension

NPS	DN	L(RF)		L1(BW)		H		(d)	W
in	mm	in	mm	in	mm	in	mm	mm	in	mm
Class 150
2	50	7.00	178	8.50	216	7.00	177	49	14	350
2¹/2	65	7.50	190	9.50	241	7.50	190	62	16	400
3	80	8.00	203	11.12	283	8.25	210	74	20	500
4	100	9.00	229	12.00	305	9.25	235	100	20	500
6	150	15.50	394	18.00	457	20.88	530	150	24	600
8	200	18.00	457	20.50	521	24.62	625	201	24	600
10	250	21.00	533	22.00	559	25.62	650	252	24	600
12	300	24.00	610	25.00	635	30.75	780	303	24	600
14	350	27.00	686	30.00	762	31.00	790	334	32	800
16	400	30.00	762	33.00	838	36.25	920	385	32	800
18	450	34.00	864	36.00	914	38.25	970	436	32	800
20	500	36.00	914	39.00	991	43.38	1100	487	32	800
24	600	42.00	1067	45.00	1143	45.25	1150	589	32	800
26	650	45.00	1143	49.00	1245	50.75	1290	633	32	800
28	700	49.00	1245	53.00	1346	55.12	1400	684	32	800
30	750	51.00	1295	55.00	1397	64.12	1630	735	32	800
32	800	54.00	1372	60.00	1524	70.88	1840	779	32	800
36	900	60.00	1524	68.00	1727	80.75	2050	874	32	800

Main Parts Materia

No.	Part Name	Carbon Steel	18Cr-9Ni-2Mo	Low temperature carbon steel
1	Body	A216-WCB	A351-CF8M	A352-LCB
2	Bonnct	A216-WCB	A351 CF8M	A352 LCB
3	Ball	A182-F304	A182-F316	A182-F304
4	Stem	A276-304	A276-316	A276-304
5	Seat	A105+ENP	A182-F316	A350-LF2+ENP
6	Seat seal	Glass Filled PTFE
7	Seat Spring	A313-304	Inconel X-750	A313-304
8	Seat O-Ring	NBR	Viton	Viton
9	Stem O-Ring	NBR	Viton	Viton
10	Bonnet Gasket	Graphite+304°	Graphite+316²	Graphite+304²
11	Bonnet O-Ring	NBR	Viton	Viton
12	Antistatic Spring	A313-304	A313-316	A313-304
13	Grounding Plunger	A216-WCB	A₁82-F316	A182-F304
14	Valve cover bolt	A193-B7	A193-B8	A320-L7
15	Valve cover nut	A194-2H	A194-8	A194-7
16	Trunn ion	A276-304	A276-316	A276-304
17	Trunnion Bearing	304+PTFE	316+PTFE	304+PTFE
18	Packing press plate	A216-WCB	A351-CF8M	A352-LCB
19	Packing bolt	A193-B7	A193-B8	A193-B7
20	Positioning sheet	Carbon Steel	Carbon Steel +Zn	Carbon Steel
21	Handle	Carbon Steel

Applicable standards:

Ball valves,API608/API6D

Ball valves,ISO 10434/ISO14313

Fire durable,API607

Anti static,API608

Valves,ASME B16.34

Face to face,ASMEB16.10

End flanges,ASMEB16.5

Buttwelding ends,ASMB16.25

Inspection and test;API598/API6D

Design description:

Full port design

Bb,bolted bonnet,split body

Floating ball type

Blow-out proof stem

Fire durable construction

Anti static device

Stopper device

ISO5211 mounting pad

Flanged or butt welding ends

Available with bg operator

Main External and Connection Dimension

NPS	DN	L(RF)		L1(BW)		H		(d)	W
in	mm	in	mm	in	mm	in	mm	mm	in	mm
Class 300
2	50	8.50	216	8.50	216	7.00	177	49	14	350
2¹/2	65	9.50	241	9.50	241	7.50	190	62	16	400
3	80	11.12	283	11.12	283	8.25	210	74	20	500
4	100	12.00	3.5	12.00	305	9.25	235	100	20	500
6	150	15.88	403	18.00	457	20.88	530	150	24	600
8	200	19.75	502	20.50	521	24.62	625	201	24	600
10	250	22.38	568	22.00	559	25.62	650	252	24	600
12	300	25.50	648	25.00	635	30.75	780	303	24	600
14	350	30.00	762	30.00	762	31.00	790	334	32	800
16	400	33.00	838	33.00	838	36.25	920	385	32	800
18	450	36.00	914	36.00	914	38.25	970	436	32	800
20	500	39.00	991	39.00	991	43.38	1100	487	32	800
24	600	45.00	1143	45.00	1143	45.25	1150	589	32	800
26	650	49.00	1245	49.00	1245	50.75	1290	633	32	800
28	700	53.00	1346	53.00	1346	55.12	1400	684	32	800
30	750	55.00	1397	55.00	1397	64.12	1630	735	32	800
32	800	60.00	1524	60.00	1524	70.88	1800	779	32	800

No.	Part Name	Carbon Steel	18Cr-9Ni-2Mo	Low temperature carbon steel
1	Body	A216-WCB	A351-CF8M	A352-LCB
2	Bonnct	A216-WCB	A351 CF8M	A352 LCB
3	Ball	A182-F304	A182-F316	A182-F304
4	Stem	A276-304	A276-316	A276-304
5	Seat	A105+ENP	A182-F316	A350-LF2+ENP
6	Seat seal	Glass Filled PTFE
7	Seat Spring	A313-304	Inconel X-750	A313-304
8	Seat O-Ring	NBR	Viton	Viton
9	Stem O-Ring	NBR	Viton	Viton
10	Bonnet Gasket	Graphite+304°	Graphite+316²	Graphite+304²
11	Bonnet O-Ring	NBR	Viton	Viton
12	Antistatic Spring	A313-304	A313-316	A313-304
13	Grounding Plunger	A216-WCB	A₁82-F316	A182-F304
14	Valve cover bolt	A193-B7	A193-B8	A320-L7
15	Valve cover nut	A194-2H	A194-8	A194-7
16	Trunn ion	A276-304	A276-316	A276-304
17	Trunnion Bearing	304+PTFE	316+PTFE	304+PTFE
18	Packing press plate	A216-WCB	A351-CF8M	A352-LCB
19	Packing bolt	A193-B7	A193-B8	A193-B7
20	Positioning sheet	Carbon Sieel	Carbon Sleel +Zn	Carbon Sleel
21	Handle	Carbon Sieel

Applicable standards:

Ball valves,API608/API6D

Ball valves,ISO 10434/ISO14313

Fire durable,API607

Anti static,API608

Valves,ASME B16.34

Face to face,ASMEB16.10

End flanges,ASMEB16.5

Buttwelding ends,ASMB16.25

Inspection and test;API598/API6D

Design description:

Full port design

Bb,bolted bonnet,split body

Floating ball type

Blow-out proof stem

Fire durable construction

Anti static device

Stopper device

ISO5211 mounting pad

Flanged or butt welding ends

Available with bg operator

NPS	DN	L(RF)		L1(BW)		H (d)			W
in	mm	in	mm	in	mm	in	mm	mm	in	mm
Class 600
2	50	11.50	292	11.50	292	7.12	180	49	14	350
2¹/2	65	13.00	330	13.00	330	7.62	193	62	16	400
3	80	14.00	356	14.00	356	8.50	215	74	20	500
4	100	17.00	432	17.00	432	9.50	241	100	20	500
6	150	22.00	559	22.00	559	21.25	540	150	24	600
8	200	26.00	660	26.00	660	25.00	635	201	24	600
10	250	31.00	787	31.00	787	26.12	665	252	24	600
12	300	33.00	838	33.00	838	31.12	790	303	24	600
14	350	35.00	889	35.00	889	31.88	810	334	32	800
16	400	39.00	991	39.00	991	36.38	925	385	32	800
18	450	43.00	1092	43.00	1092	38.75	985	436	32	800
20	500	47.00	1194	47.00	1194	44.50	1130	487	32	800
24	600	55.00	1397	55.00	1397	46.62	1185	589	32	800
26	650	57.00	1448	57.00	1448	52.50	1335	633	32	800
28	700	61.00	1549	61.00	1549	57.00	1450	684	32	800

Main Parts Materia

No.	Part Name	Carbon Steel	18Cr-9Ni-2Mo	Low temperature carbon steel
1	Body	A216-WCB	A351-CF8M	A352-LCB
2	Bonnct	A216-WCB	A351 CF8M	A352 LCB
3	Ball	A182-F304	A182-F316	A182-F304
4	Stem	A276-304	A276-316	A276-304
5	Seat	A105+ENP	A182-F316	A350-LF2+ENP
6	Seat seal	Glass Filled PTFE
7	Seat Spring	A313-304	Inconel X-750	A313-304
8	Seat O-Ring	NBR	Viton	Viton
9	Stem O-Ring	NBR	Viton	Viton
10	Bonnet Gasket	Graphite+304°	Graphite+316²	Graphite+304²
11	Bonnet O-Ring	NBR	Viton	Viton
12	Antistatic Spring	A313-304	A313-316	A313-304
13	Grounding Plunger	A216-WCB	A₁82-F316	A182-F304
14	Valve cover bolt	A193-B7	A193-B8	A320-L7
15	Valve cover nut	A194-2H	A194-8	A194-7
16	Trunn ion	A276-304	A276-316	A276-304
17	Trunnion Bearing	304+PTFE	316+PTFE	304+PTFE
18	Packing press plate	A216-WCB	A351-CF8M	A352-LCB
19	Packing bolt	A193-B7	A193-B8	A193-B7
20	Positioning sheet	Carbon Steel	Carbon Steel +Zn	Carbon Steel
21	Handle	Carbon Steel

Applicable standards:

Ball valves,API608/API6D

Ball valves,ISO 10434/ISO14313

Fire durable,API607

Anti static,API608

Valves,ASME B16.34

Face to face,ASMEB16.10

End flanges,ASMEB16.5

Buttwelding ends,ASMB16.25

Inspection and test;API598/API6D

Design description:

Full port design

Bb,bolted bonnet,split body

Floating ball type

Blow-out proof stem

Fire durable construction

Anti static device

Stopper device

ISO5211 mounting pad

Flanged or butt welding ends

Available with bg operator

NPS in	DN mm	L(RF)		L1(BW)		H		(d)	W
NPS in	DN mm	in	mm	in	mm	in	mm	mm	in	mm
Class 900
2	50	14.50	368	14.50	368	8.62	219	49	20	500
21/2	65	16.50	419	16.50	419	9.25	235	62	20	500
3	80	15.00	381	15.00	381	10.25	260	74	20	500
4	100	18.00	457	18.00	457	15.38	390	100	24	600
6	150	24.00	610	24.00	610	25.75	655	150	24	600
8	200	29.00	737	29.00	737	30.25	770	201	24	600
10	250	33.00	838	33.00	838	31.75	805	252	24	600
12	300	38.00	965	38.00	965	38.00	965	303	32	800
14	350	40.50	1029	40.50	1029	38.50	980	322	32	800
16	400	44.50	1130	44.50	1130	45.00	1145	373	32	800
18	450	48.00	1219	48.00	1219	47.00	1195	423	32	800
20	500	52.00	1321	52.00	1321	53.50	1360	471	32	800
24	600	61.00	1549	61.00	1549	56.00	1425	570	32	800

Main Parts Materia

No.	Part Name	Carbon Steel	18Cr-9Ni-2Mo	Low temperature carbon steel
1	Body	A216-WCB	A351-CF8M	A352-LCB
2	Bonnct	A216-WCB	A351 CF8M	A352 LCB
3	Ball	A182-F304	A182-F316	A182-F304
4	Stem	A276-304	A276-316	A276-304
5	Seat	A105+ENP	A182-F316	A350-LF2+ENP
6	Seat seal	Glass Filled PTFE
7	Seat Spring	A313-304	Inconel X-750	A313-304
8	Seat O-Ring	NBR	Viton	Viton
9	Stem O-Ring	NBR	Viton	Viton
10	Bonnet Gasket	Graphite+304°	Graphite+316²	Graphite+304²
11	Bonnet O-Ring	NBR	Viton	Viton
12	Antistatic Spring	A313-304	A313-316	A313-304
13	Grounding Plunger	A216-WCB	A₁82-F316	A182-F304
14	Valve cover bolt	A193-B7	A193-B8	A320-L7
15	Valve cover nut	A194-2H	A194-8	A194-7
16	Trunn ion	A276-304	A276-316	A276-304
17	Trunnion Bearing	304+PTFE	316+PTFE	304+PTFE
18	Packing press plate	A216-WCB	A351-CF8M	A352-LCB
19	Packing bolt	A193-B7	A193-B8	A193-B7
20	Positioning sheet	Carbon Steel	Carbon Steel +Zn	Carbon Steel
21	Handle	Carbon Steel

Applicable standards:

Ball valves,API608/API6D

Ball valves,ISO 10434/ISO14313

Fire durable,API607

Anti static,API608

Valves,ASME B16.34

Face to face,ASMEB16.10

End flanges,ASMEB16.5

Buttwelding ends,ASMB16.25

Inspection and test;API598/API6D

Design description:

Full port design

Bb,bolted bonnet,split body

Floating ball type

Blow-out proof stem

Fire durable construction

Anti static device

Stopper device

ISO5211 mounting pad

Flanged or butt welding ends

Available with bg operator

NPS in	DN	L(RF)		L1(BW)		H		(d)	W
NPS in	mm	in	mm	in	mm	in	mm	mm	in	mm
Class 1500
2	50	14.50	368	14.62	371	11.25	285	49	20	500
21/2	65	16.50	419	16.62	422	12.00	306	62	20	500
3	80	18.50	470	18.62	473	13.25	338	74	24	600
4	100	21.50	546	21.62	549	20.00	506	100	24	600
6	150	27.75	705	28.00	711	33.50	852	144	24	600
8	200	32.75	832	33.13	842	39.38	1000	192	32	800
10	250	39.00	991	39.38	1000	41.12	1045	239	32	800
12	300	44.50	1130	45.12	1146	49.38	1255	287	32	800
14	350	49.50	1257	50.25	1276	50.00	1270	315	32	800
16	400	54.50	1384	55.38	1407	58.50	1485	360	32	800
Class 2500
2	50	17.75	451	17.87	454	12.00	304	42	20	500
21/2	65	20.00	508	20.25	514	12.88	327	52	24	600
3	80	22.75	578	23.00	584	14.25	362	62	24	600
4	100	26.50	673	26.88	683	21.25	540	87	24	600
6	150	36.00	914	36.50	927	35.88	911	131	32	800
8	200	40.25	1022	40.87	1038	42.12	1070	179	32	800
10	250	50.00	1270	50.88	1292	44.00	1120	223	32	800
12	300	56.00	1422	56.88	1445	53.00	1345	265	32	800
